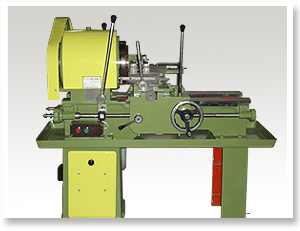

| THREADING MACHINE FOR PVC PIPES |
-
Generally pipe threading are done by threading dies and taps which are highly expansive and needs special operator to do. Our machine does the threading by single point tool. Due to single point contact it make the whole concept highly economical and accurate. Mass production can be achieved which bring down the machining cost drastically lower.
-
Both Internal as well as External threading can be performed on same machine with very minor changes in Jigs. This changes does not require any skill operator.
-
This machines can perform both types of Thread Profile i.e. “V” as well as Square Threads.
-
On this machine you can do Grooving for “O” ring and turning operation at same time.
-
This machine can do threading easily on PVC, BRASS and ALLUMINIUM pipes.
-
On this machine Taper Threading is also possible with some changes of Jigs.
Technical specification :
M/C Model |
Min I.D. For Internal
Threading |
Max O.D. For External Threading |
Electric |
General |
H.P. |
Supply
(V) |
M/C Size
(MM) (LxWxH) |
M/C Wt.
(Kg.) |
| PT-1 |
13 MM (1/2") |
65 MM (2 1/2") |
1 |
440 |
1250 x 750 x 1200 |
480 |
| PT-2 |
32 MM (1 1/4") |
115 MM (4 1/2") |
2 |
440 |
1250 x 750 x 1200 |
610 |
| PT-3 |
50 MM (2") |
160 MM (6") |
2 |
440 |
1250 x 750 x 1200 |
650 |
| PT-3 Casing |
50 MM (2") |
168 MM (6") |
2 |
440 |
1250 x 750 x 1200 |
650 |
| PT-3 Assy. |
Pipe Assy. Machine |
160 MM (6") |
2 |
440 |
1250 x 1000 x 1200 |
650 |
|
| |
| |
|
